Frozen Drive on server?

Assetto Corsa Server Manager v2
1

Hello!

I am wondering if its achievable to have CSP’s Frozen Drive mode on our Assetto Corsa server.

What i know so far to get it to work client side.

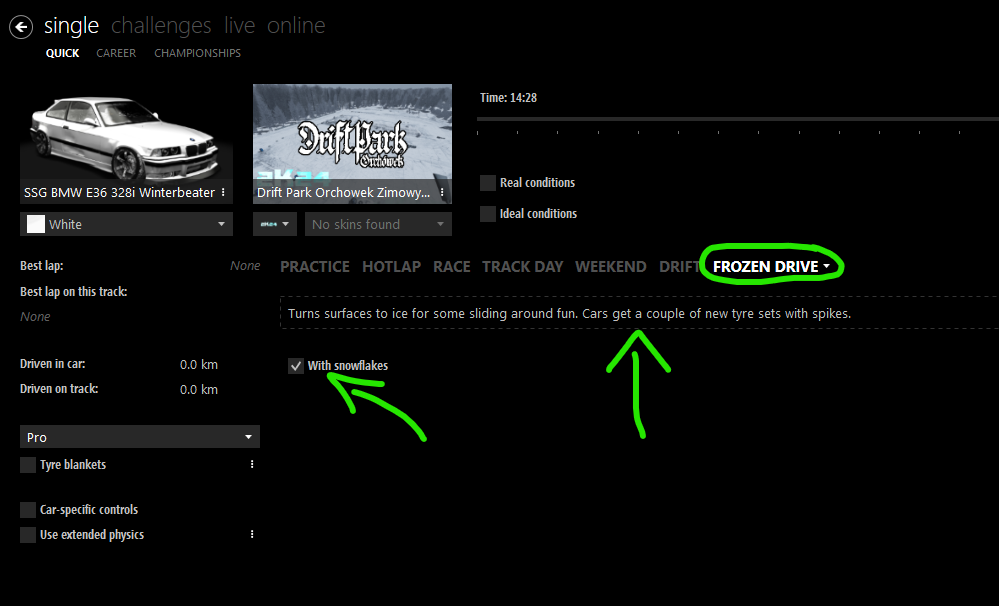

  • You activate this mode in the Drive tab client side.
  • CSP Particle effects needs to be enabled
  • Sol/pure
  • CSP 0.2.xx above

Once that’s done once you load into the game snow flakes will be in the air and track surface grip is changed.

It also adds 2 new available tyres in your setup in the pits.

Street Studded and Rally Studded.

I know full rain with particles/physics is available on your servers and was wondering if this would be to?

Look forward to hearing from you.

Thank you!!

https://i.postimg.cc/h4YJPw6Z/image.png

2

Hi, thanks for getting in touch. This should be possible but there are a few hoops to jump through, I’ll run through the process as I understand it (this is just from experimenting myself, so this may not be 100% correct).

Track Setup

First the track needs to be set up to support snow and/or ice, the only thing that needs to be done here is to set the following for any surface that should be snow or ice in surfaces.ini for the layout being used (or to create a new snow layout with this added):

_EXT_SURFACE_TYPE=SNOW

Or:

_EXT_SURFACE_TYPE=ICE

To give a full example of a surface:

[SURFACE_0]
KEY=PAVE
FRICTION=0.95
DAMPING=0
WAV=
WAV_PITCH=0
FF_EFFECT=1
DIRT_ADDITIVE=0
BLACK_FLAG_TIME=0
IS_VALID_TRACK=1
SIN_HEIGHT=0
SIN_LENGTH=0
IS_PITLANE=0
VIBRATION_GAIN=0.4
VIBRATION_LENGTH=0.5
_EXT_SURFACE_TYPE=SNOW

Some tracks intended for snow will be already set up like this, but not all will. This makes the surface have snow/ice physics and particle effects, but won’t change how it looks outside of texture changes (I think this is the same as Frozen Drive). To use this modified track/layout online you will need to distribute it to drivers as well as uploading it to the server.

Event Setup

In the event setup there are a few different things to set:

  1. Weather Type: Custom Shaders Patch with Transitions (or weighted random)
  2. Graphics: Snow (or Light Snow etc.) (optional - this should give you falling snow)
  3. Required Minimum CSP Version: Any version since v0.2.6 (3749 for example for very recent preview)
  4. Core Options: Enable both custom car and track physics
  5. Legal Tyres: Deselect all of the tyres so they are in the red list on the left

That should be everything, you should be able to select the CSP Ice tyres in-game and will have the appropriate physics set based on the surfaces in surfaces.ini.

3

Thank you very much for taking the time to reply with such a detailed and informative response.

Once I have some time, I’ll give it a try and let you know how I get on.

Thanks again and I really appreciate you taking the time to help.

edit: I did ready somewhere temperature has to be -3 for snow particles. I set the ambient temp to -4 inside server settings however it doesnt show a value on the server info in the server browser. Possibly something wrong there?

4

I have followed your instructions and right now it gives me the CSP Ice/Snow tires.

However for example when i select Heavy Snow it gives me a heavy mist on the track but no snow particles in the air like i get in offline mode.

Any idea what i am doing wrong?

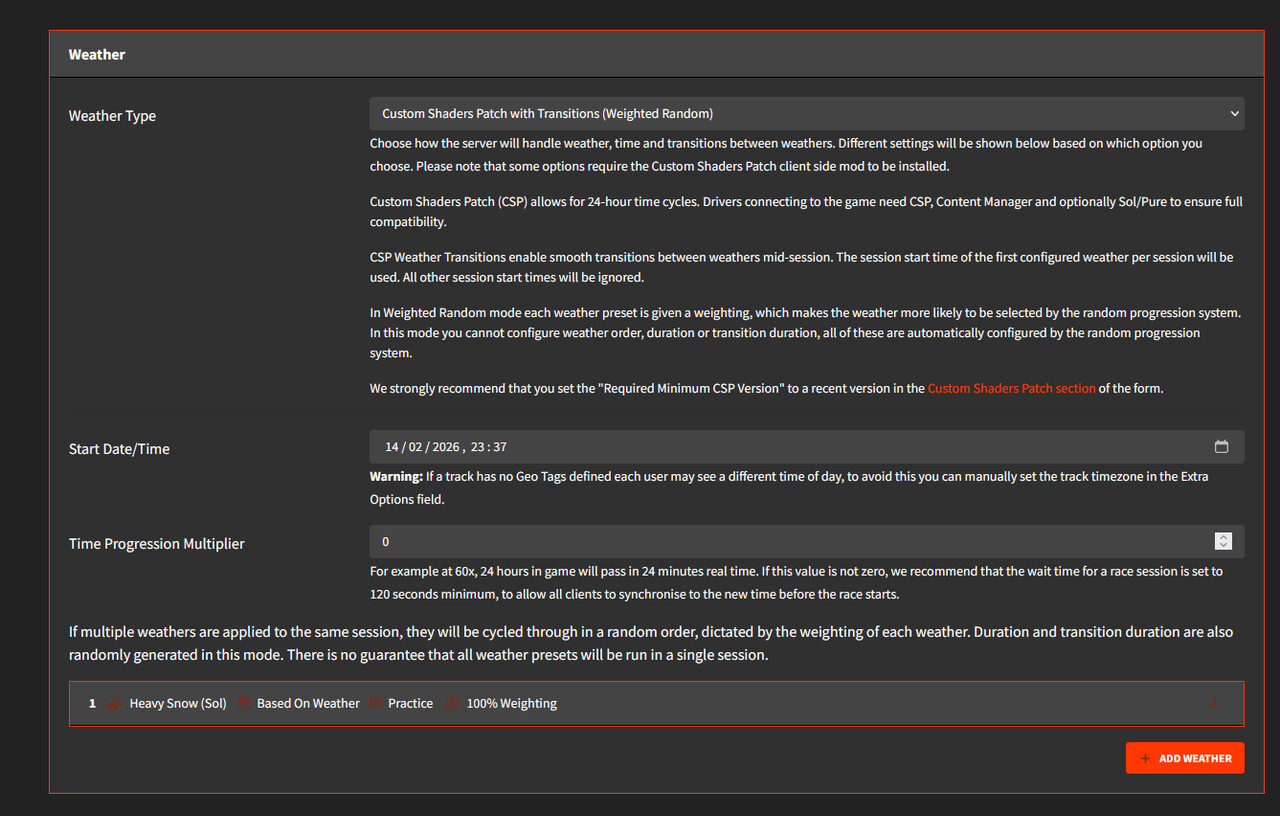

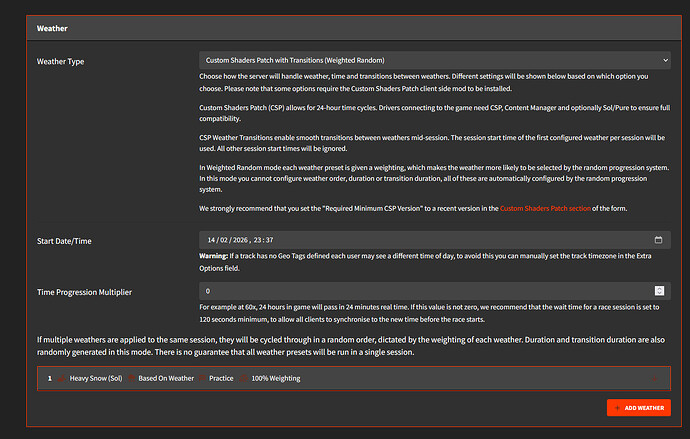

I have attached screenshots of my server settings. Hope that helps.

Thank you again!

5

You’re welcome, I’m glad you got the physics portion working.

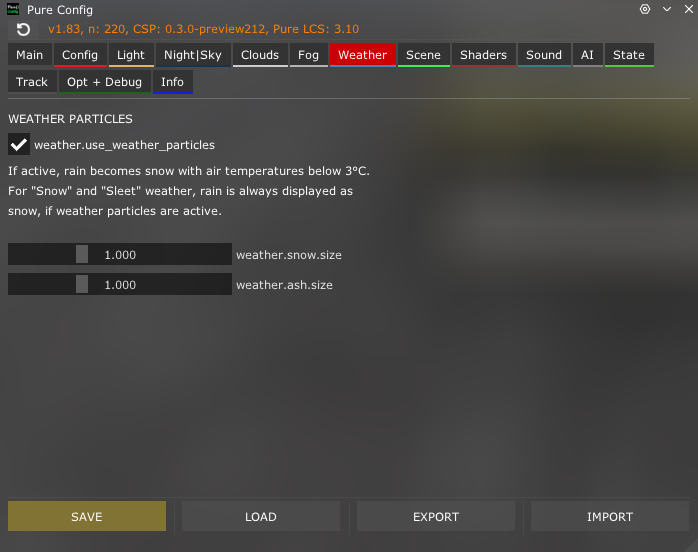

I’m afraid I’m not too sure about the snow particles, for me they seem to be working without any extra config on top of what I mentioned. Are you running Pure? For me this checkbox needs to be active (using the in-game Pure Config app):

image698×552 76.8 KB

As per that you should get snow under 3 degrees for any weather preset, but it should always be snow regardless of temperature if the weather itself is set to any snow or sleet preset.

I do have some ideas you could try:

  1. Enable rain (Follow this guide). You may also need to set “Custom Rain Preset” in the weather config to some preset with rain falling.
  2. Try setting the ambient temperature to some low positive value. The temperature not appearing in the CM browser shouldn’t be an issue so long as it is set correctly when you get in-game.
